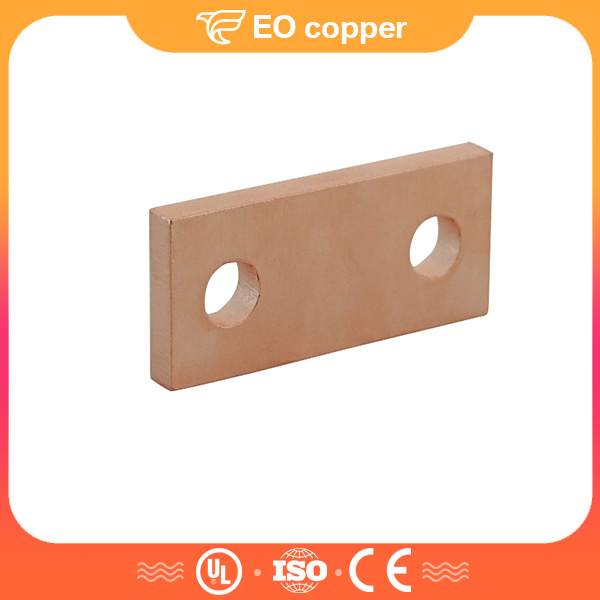

Non-insulated Bare Copper T2 Flat Bus Bar

Product Data

Product Description

1) Bare copper busbar is make of T2 copper material, which is 99.9% copper contented. It capitals the excellent products conductivity with less impurity

2) The surface of bare copper busbar is usually treated by polishing (making the surface smooth and bright), passivating (preventing it from aerugo) or both. Clean and  free-from- burr holes make sure good contact of bolts and busbar.

3) Bare copper busbar is shaped with electrical wiring cut from whole copper plate or cut from available copper bars if the width and thickness is normal.

Non-insulated Bare Copper T2 Flat Bus Bar Features:

Products can be made according drawing and customer design. Any requirements can be sent by email and indicated on drawing. Our engineer will do best to meet your needs.

Copper Content:      99.9%

Conductivity:       > 100 IACS

Copper Thickness:       • 1mm • 2mm • 3mm • Other

Copper Width:       • 10mm   • 20mm   • 30mm   • Other

Plating Options:       • Tin plating • Nickle plating • Sliver plating

Insulation Options:      • Heat shrink tube   • PVC dipping coat • expoy powder

End Shape:       • Semicircle         • Round Corner      • Square Corner

Product Application

Advantage of Non-insulated Bare Copper T2 Flat Bus Bar

1. Improve equipments property.

Copper busbar can reduce the resistance and lower power consumption. Copper busbar is capable of steady current carrying capacity and voltage-sharing.

2. Easy to install, examine and maintain.

Copper busbar can be installed with simple tools. Anyone can use it with bolt, nut and screwdriver. The workers examine the property with tester.

3. Reduce Cost

Copper Busbar increase the serve-life of machines and equipments. Good quality T2 copper material can lower the temperature raise and loss of equipment parts

Package and Delivery

1. Standard Exporting package.

2. Original package or neutral package.

3. According to clients ' needs.

4. Shipped in10-35 days after payment.
